BODY

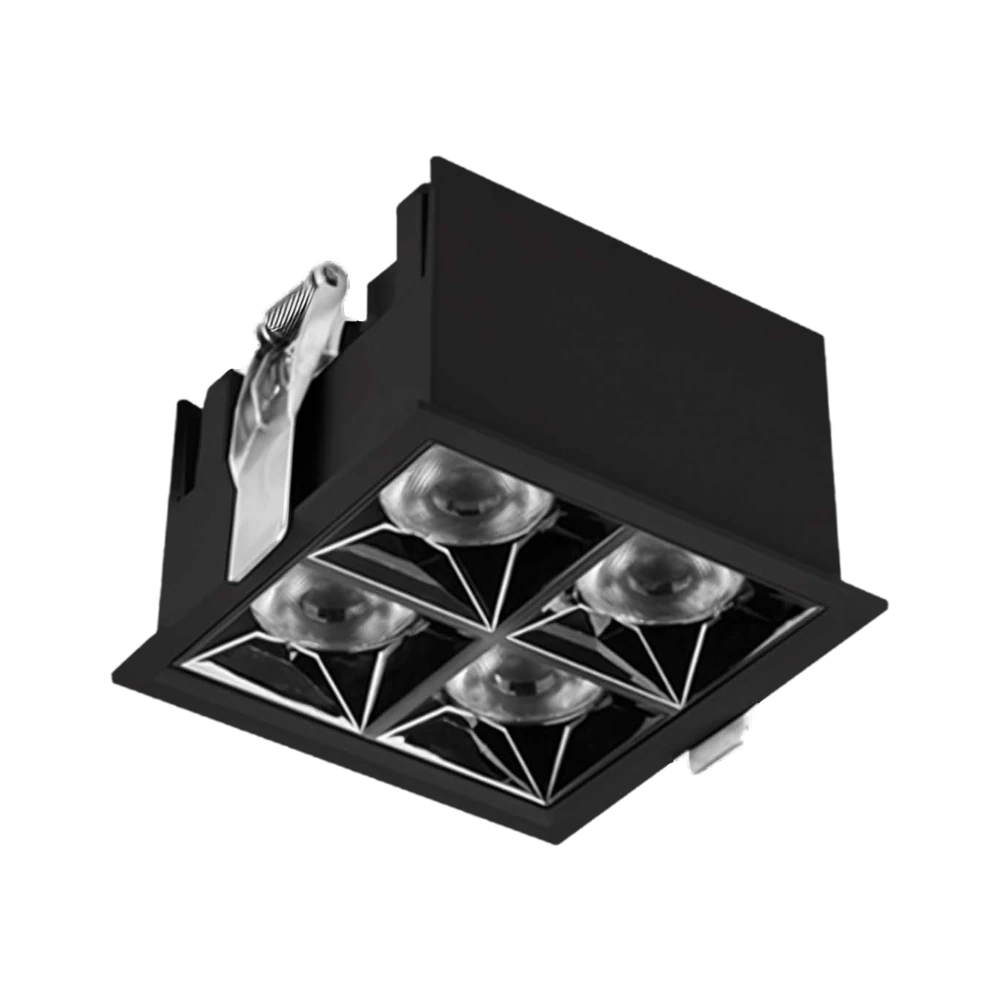

Aluminum profile frame and injection head.
REFLECTOR
High-purity aluminum reflector; narrow, medium and wide angle options.
CONVERTER
Long life, low power loss converter with constant current. Compatible with ENEC standards.
LED
LED modules with 60,000 hours lifetime, SAMSUNG / OSRAM / PHILIPS brand LEDs.
APPLICATION AREAS
Shopping Malls, Supermarkets, Offices, Meeting Rooms, Stores, Hospitals, Schools, Corridors
| Body | Aluminum profile frame and injection head |
|---|---|
| Optic | High-purity aluminum reflector; narrow, medium and wide angle |
| Insulation Class | Class I |
| Ingress Protection (IP) | IP40 |
| Power | 12 W |
|---|---|
| Light Source | COB LED (SAMSUNG / OSRAM / PHILIPS) |
| Input Voltage | 220–240 V AC / 50–60 Hz |
| LED Driver | Constant current (ENEC) |
| LED Lifetime L70 | 60,000 Hours |
| Luminous Flux | 1065 lm |
|---|---|
| Colour Temperature (CCT) | 2700–6500 K |
| CRI [Ra] | > 80 |

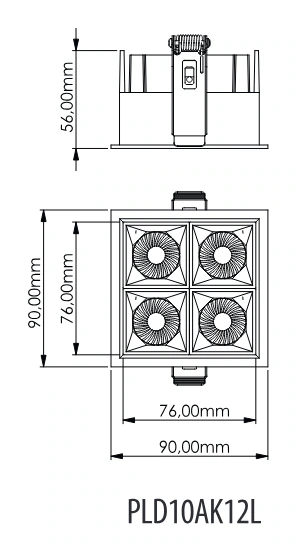

| Code | AC POWER (W) | LED Type | Luminaire Output Flux (lm) | Color Temperature (K) | a (mm) | h (mm) | Ceiling Cut (mm) |
|---|---|---|---|---|---|---|---|
| PLD10AK12L | 12 | COB | 1065 | 2700 - 6500 | 90 | 56 | 85 x 85 |
REFERENCES
PLD10AK comes as a single model, which makes it practical when writing a specification: 90 × 90 mm frame, 56 mm body height, 12 W and 1065 lm. The square 85 × 85 mm ceiling cut-out is easily made with a jigsaw. At roughly 89 lumens per watt it gives a comfortable level of general lighting in homes and offices.
The shallow body is an advantage in refurbishments where ceiling void is limited. COB LED, aluminium reflector and ENEC-compliant driver are shared with the rest of the family; colour temperature is chosen between 2700 K and 6500 K. It suits hallways, corridors, dressing rooms and meeting rooms.
