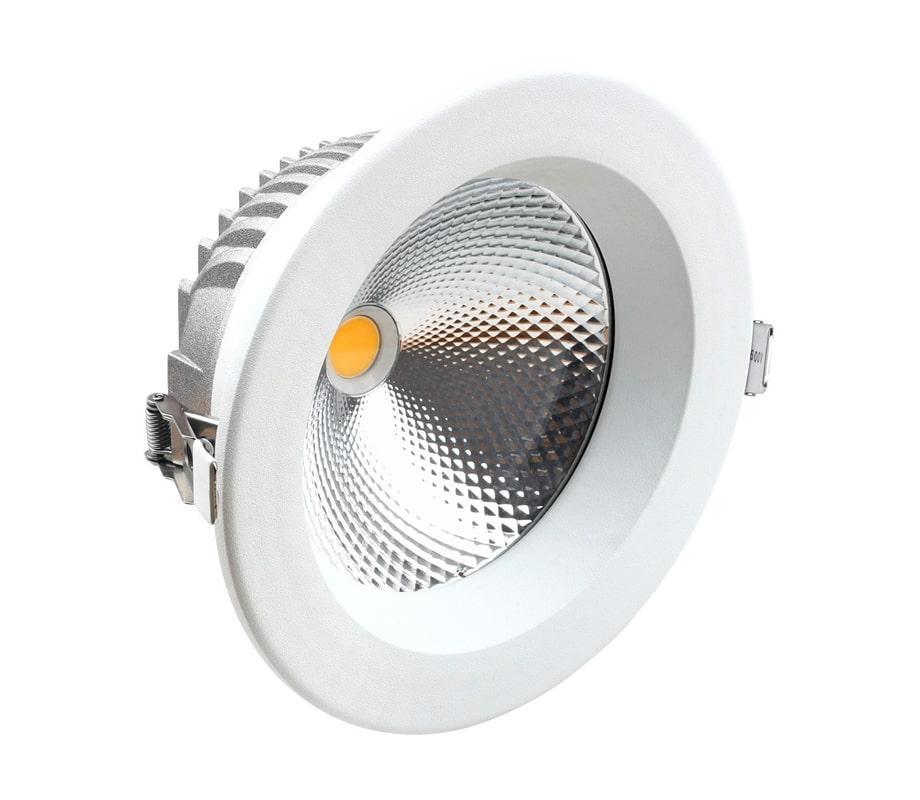

Bevelled edge COB Downlight

Bevelled edge COB Downlight

BODY

White or optional any color aluminum body with effective cooling performance.

CONVERTER

Long-lasting, low power, constant current converter compliant with ENEC standards.

LED

60,000-hour lifespan LUMILEDS brand LED modules.

APPLICATION AREAS

Shopping Centers, Markets, Offices, Meeting Rooms, Living Rooms, Waiting Lounges, Stores, Hospitals, Schools, Corridors

Bevelled edge COB Downlight Technical Specifications

General
Insulation Class CLASS I
Ingress Protection (IP) IP40
Weight 0.26–0.75 kg
Warranty 3 Years
Electrical
Power 8–29 W
Power Factor >0.95
Cable Halogen-Free
Ambient Temperature -20°C / +50°C
LED Lifetime L70 60,000 Hours
Light & Optics
Luminous Flux 900–3130 lm
Beam Angle 120°
Colour Consistency (MacAdam) Mc Adams ≤ 3

Optional

  • DALI Driver
  • Emergency kit
  • UGR ≤ 19
  • CRI ≥ 90
  • RGBW Options
  • Tunable White

Classes & Standards

  • CE: conforms to EU safety, health and environmental requirements.
  • Suitable for direct mounting on normally flammable surfaces.
  • Class I: electrical protection with earth connection.
  • IP40: protected against solid objects over 1 mm.
  • TSE: certified by the Turkish Standards Institution.
  • TS EN 60598-2-2: standard the product complies with.
Code AC POWER (W) Armature Output Flux (lm) Width (mm) Diameter / Length (mm) Height (mm) Weight (kg) Ldt
PLC2AY8C22 8 900   108 60 0.26 ⬇️
PLC2AY10C325 10 1110 - 128 55 0,26 ⬇️
PLC2AY10C425 10 1075 - 150 55 0,50 ⬇️
PLC2AY14C435 14 1445 - 150 55 0.50 ⬇️
PLC2AY14C535 14 1635 - 180 55 0.55 ⬇️
PLC2AY21C55 21 2250 - 180 55 0.55 ⬇️
PLC2AY14C635 14 1825 - 200 55 0,58 ⬇️
PLC2AY21C65 21 2490 - 200 55 0.58 ⬇️
PLC2AY29C67 29 3130 - 200 55 0,58 ⬇️
PLC2AY14C835 14 1825 - 240 55 0,75 ⬇️
PLC2AY21C85 21 2490 - 240 55 0,75 ⬇️
PLC2AY29C87 29 3130 - 240 55 0,75 ⬇️
