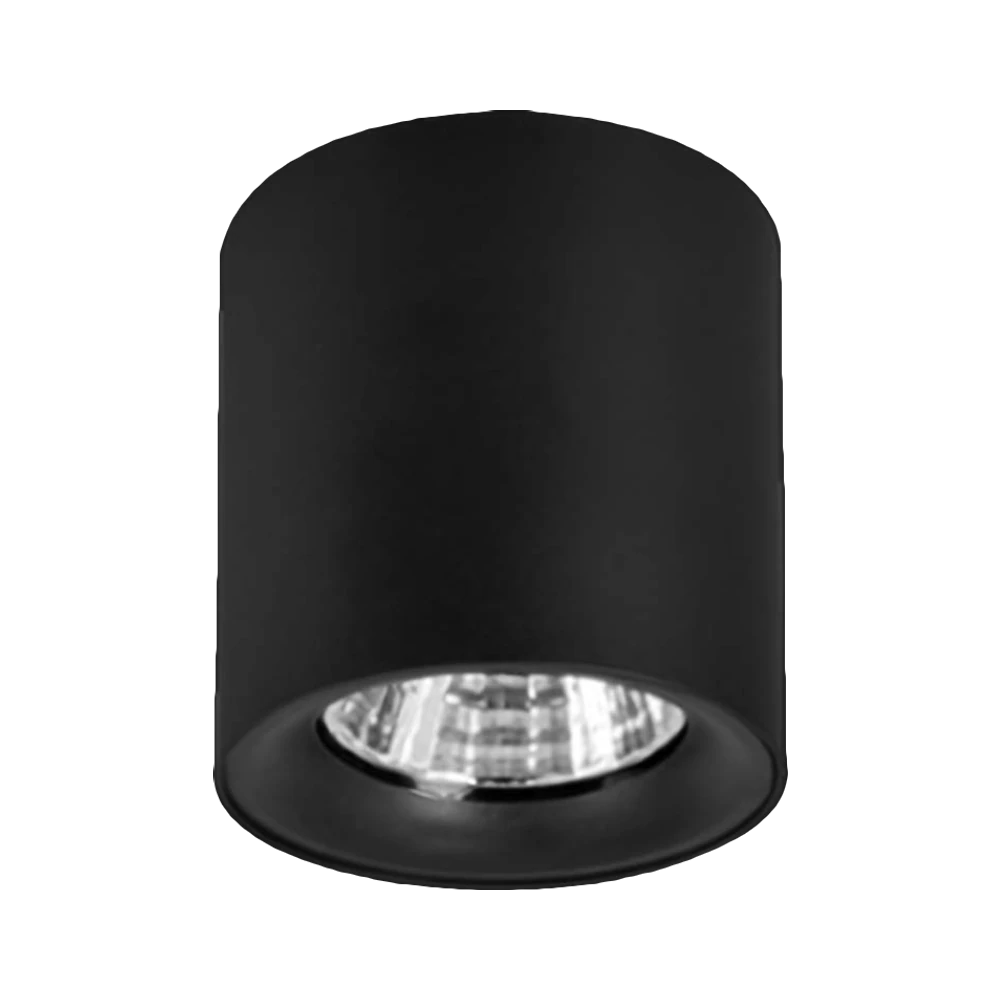

Surface Mounted Spot PLC1U

Surface Mounted Spot PLC1U
Surface Mounted Spot PLC1U

BODY

Aluminum profile frame and injection head.

REFLECTOR

High-purity aluminum reflector; narrow, medium and wide angle options.

CONVERTER

Long life, low power loss converter with constant current. Compatible with ENEC standards.

LED

LED modules with 60,000 hours lifetime, SAMSUNG / OSRAM / PHILIPS brand LEDs.

APPLICATION AREAS

Shopping Malls, Supermarkets, Offices, Meeting Rooms, Stores, Hospitals, Schools, Corridors

Surface Mounted Spot PLC1U Technical Specifications

General
Body Aluminum profile frame and injection head
Optic High-purity aluminum reflector; narrow, medium and wide angle
Insulation Class Class I
Ingress Protection (IP) IP40
Electrical
Power 10–30 W
Light Source COB LED (SAMSUNG / OSRAM / PHILIPS)
Input Voltage 220–240 V AC / 50–60 Hz
LED Driver Constant current (ENEC)
LED Lifetime L70 60,000 Hours
Light & Optics
Luminous Flux 1090–3270 lm
Colour Temperature (CCT) 2700–6500 K
CRI [Ra] > 80

Optional

  • Dimmable driver
  • Emergency kit

Classes & Standards

  • CE: conforms to EU safety, health and environmental requirements.
  • Suitable for direct mounting on normally flammable surfaces.
  • Class I: electrical protection with earth connection.
  • IP40: protected against solid objects over 1 mm.
  • TSE: certified by the Turkish Standards Institution.
  • TS 8698: standard the product complies with.
  • EN 60598-2-1: standard the product complies with.

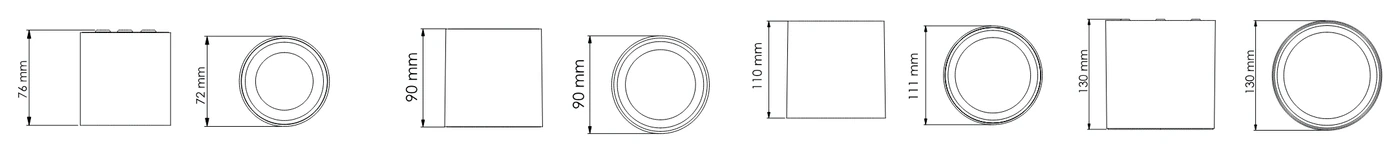

Code AC POWER (W) LED Type Luminaire Output Flux (lm) Color Temperature (K) a (mm) h (mm)
PLC1U10C 10 COB 1090 2700 - 6500 72 76
PLC1U20C 20 COB 2180 2700 - 6500 90 90
PLC1U27C 27 COB 2945 2700 - 6500 111 110
PLC1U30C 30 COB 3270 2700 - 6500 130 130
