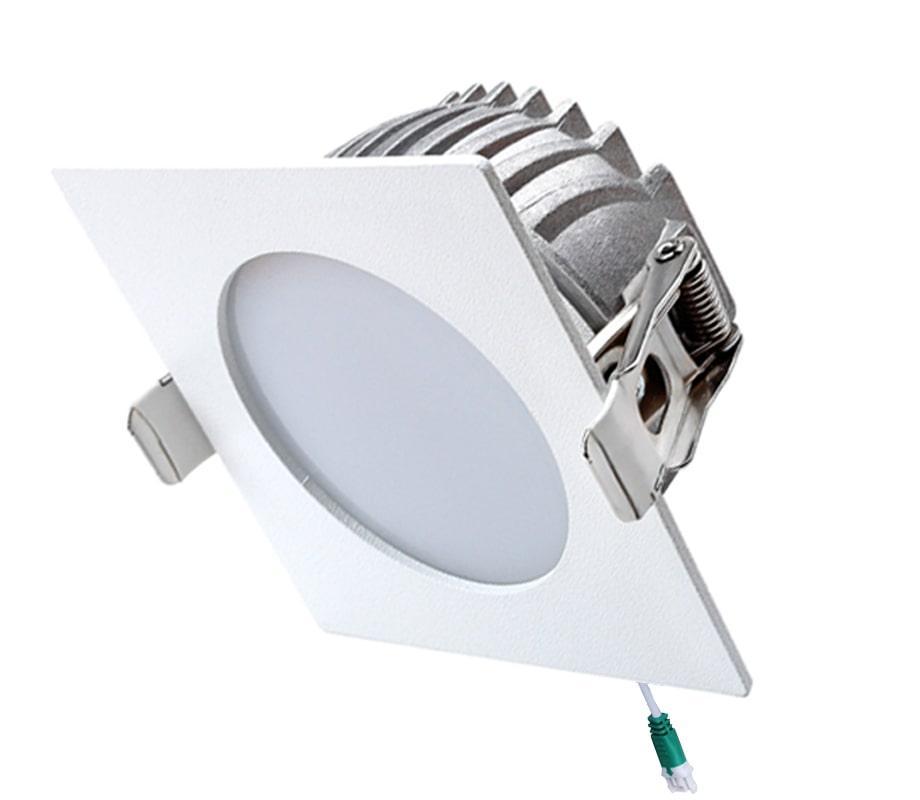

Square Frame SMD LED Downlight

Square Frame SMD LED Downlight

BODY

White or optional any color aluminum body with effective cooling performance.

CONVERTER

Long-lasting, low power, constant current converter compliant with ENEC standards.

LED

60,000-hour lifespan LUMILEDS brand LED modules.

APPLICATION AREAS

Shopping Centers, Markets, Offices, Meeting Rooms, Living Rooms, Waiting Lounges, Stores, Hospitals, Schools, Corridors

Square Frame SMD LED Downlight Technical Specifications

General
Insulation Class CLASS I
Ingress Protection (IP) IP40
Weight 0.21–0.95 kg
Warranty 3 Years
Electrical
Power 9–30 W
Power Factor >0.95
Cable Halogen-Free
Ambient Temperature -20°C / +50°C
LED Lifetime L70 60,000 Hours
Light & Optics
Luminous Flux 590–2590 lm
Beam Angle 120°
Colour Consistency (MacAdam) Mc Adams ≤ 3

Optional

  • DALI Driver
  • Emergency kit
  • UGR ≤ 19
  • CRI ≥ 90
  • RGBW Options
  • Tunable White

Classes & Standards

  • CE: conforms to EU safety, health and environmental requirements.
  • Suitable for direct mounting on normally flammable surfaces.
  • Class I: electrical protection with earth connection.
  • IP40: protected against solid objects over 1 mm.
  • TSE: certified by the Turkish Standards Institution.
  • TS EN 60598-2-2: standard the product complies with.
Code AC POWER (W) Armature Output Flux (lm) Width (mm) Diameter / Length (mm) Height (mm) Weight (kg) Ldt
PLD1AK09C225 9 590 - 97 55 0,21
PLD1AK10C325 10 670 - 117 50 0,27
PLD1AK14C335 14 860 - 117 50 0,27
PLD1AK11C425 11 785 - 147 55 0,39
PLD1AK15C435 15 1045 - 147 55 0,44
PLD1AK11C525 11 900 - 175 58 0,55
PLD1AK15C535 15 1200 - 175 58 0,55
PLD1AK19C65 19 1555 - 192 55 0,64
PLD1AK27C67 27 2040 - 192 55 0,64
PLD1AK19C85 19 1635 - 227 58 0,95
PLD1AK27C87 27 2150 - 227 58 0,95
PLD1AK30C89 30 2590 - 227 58 0,95
