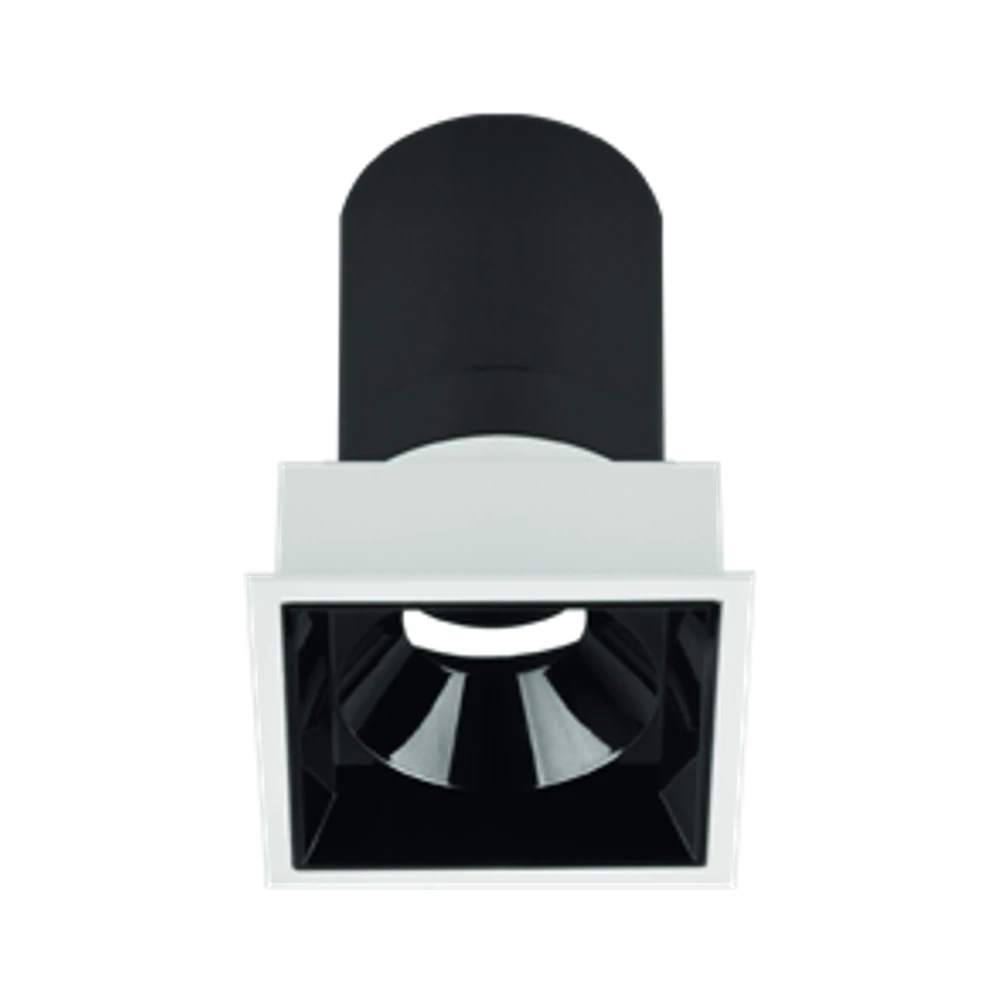

Recessed Square Spot PLC4AK

Recessed Square Spot PLC4AK
Recessed Square Spot PLC4AK

BODY

Aluminum profile frame and injection head.

REFLECTOR

High-purity aluminum reflector; narrow, medium and wide angle options.

CONVERTER

Long life, low power loss converter with constant current. Compatible with ENEC standards.

LED

LED modules with 60,000 hours lifetime, SAMSUNG / OSRAM / PHILIPS brand LEDs.

APPLICATION AREAS

Shopping Malls, Supermarkets, Offices, Meeting Rooms, Stores, Hospitals, Schools, Corridors

Recessed Square Spot PLC4AK Technical Specifications

General
Body Aluminum profile frame and injection head
Optic High-purity aluminum reflector; narrow, medium and wide angle
Insulation Class Class I
Ingress Protection (IP) IP40
Electrical
Power 8–20 W
Light Source COB LED (SAMSUNG / OSRAM / PHILIPS)
Input Voltage 220–240 V AC / 50–60 Hz
LED Driver Constant current (ENEC)
LED Lifetime L70 60,000 Hours
Light & Optics
Luminous Flux 590–1430 lm
Colour Temperature (CCT) 2700–6500 K
CRI [Ra] > 80

Optional

  • Dimmable driver
  • Emergency kit

Classes & Standards

  • CE: conforms to EU safety, health and environmental requirements.
  • Suitable for direct mounting on normally flammable surfaces.
  • Class I: electrical protection with earth connection.
  • IP40: protected against solid objects over 1 mm.
  • TSE: certified by the Turkish Standards Institution.
  • TS 8698: standard the product complies with.
  • EN 60598-2-1: standard the product complies with.

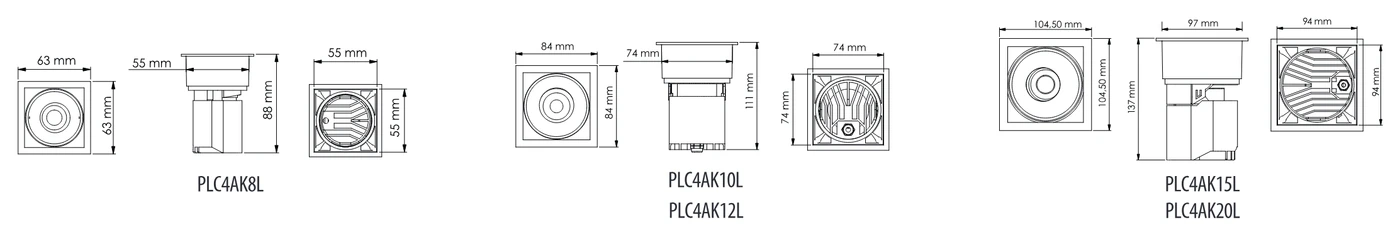

Code AC POWER (W) LED Type Luminaire Output Flux (lm) Color Temperature (K) a (mm) h (mm) Ceiling Cut (mm)
PLC4AK8L 8 COB 590 2700 - 6500 63 88 57,5 x 57,5
PLC4AK10L 10 COB 730 2700 - 6500 84 111 77,5 x 77,5
PLC4AK12L 12 COB 840 2700 - 6500 84 111 77,5 x 77,5
PLC4AK15L 15 COB 1080 2700 - 6500 104,5 137 97,5 x 97,5
PLC4AK20L 20 COB 1430 2700 - 6500 104,5 137 97,5 x 97,5
