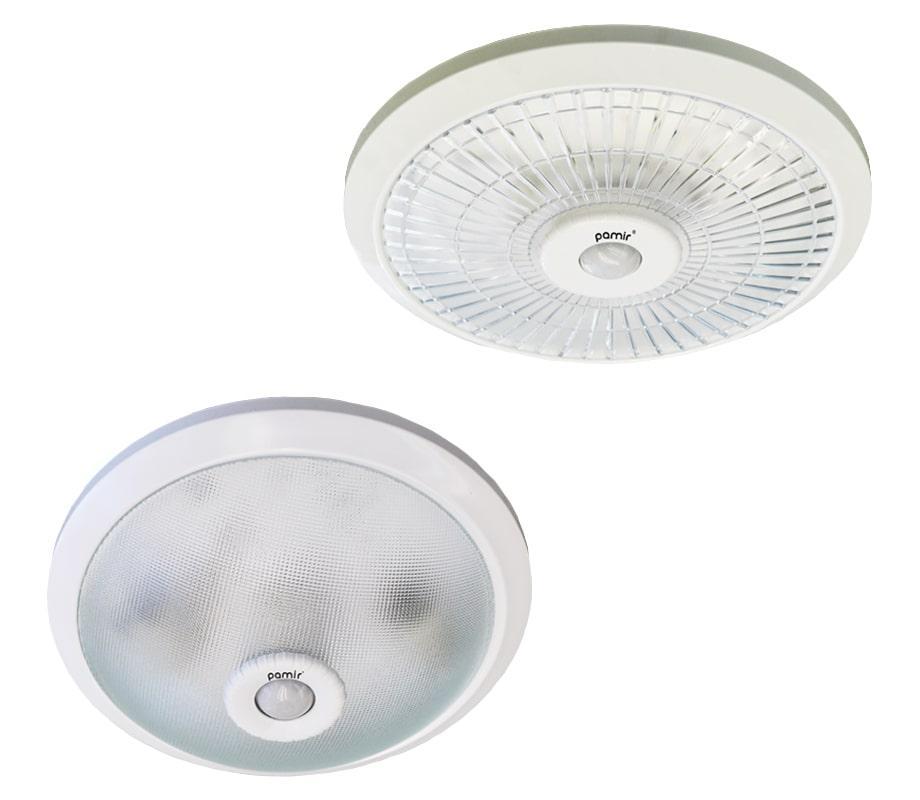

Motion Sensor Lamps

Motion Sensor Lamps

BODY

Ral9016 electrostatic powder-coated sheet metal.

LED

60,000 hours lifetime LED modules.

APPLICATION AREAS

Building entrances, stairs, corridors, all necessary areas.

Motion Sensor Lamps Technical Specifications

General
Insulation Class CLASS I
Ingress Protection (IP) IP20
Weight 1–1.1 kg
Warranty 3 Years
Electrical
Power 18 W
Power Factor >0.95
Cable Halogen-Free
Ambient Temperature -20°C / +50°C
LED Lifetime L70 60,000 Hours
Light & Optics
Beam Angle 120°
Colour Consistency (MacAdam) Mc Adams ≤ 3

Optional

  • DALI Driver
  • Emergency kit
  • UGR ≤ 19
  • CRI ≥ 90
  • RGBW Options
  • Tunable White

Classes & Standards

  • CE: conforms to EU safety, health and environmental requirements.
  • Suitable for direct mounting on normally flammable surfaces.
  • Class I: electrical protection with earth connection.
  • IP20: protected against solid objects over 12.5 mm (fingers).
  • TS 8698: standard the product complies with.
  • EN 60598-2-1: standard the product complies with.
Code AC POWER (W) Armature Output Flux (lm) Width (mm) Diameter / Length (mm) Height (mm) Weight (kg) Ldt
SGS-10 2x15 - - 300 105 1,1
SGS-10K 2x15 - - 300 105 1,1
SGS 20 18 - - 300 105 1,0
SGS 20K 18 - - 300 105 1,0
SGS 30 18 - - 300 60 1,0
SGS 30K 18 - - 300 60 1,1
