OUR PRODUCTS
LENS
Glare free, UGR<19 Lens with 30° , 60° , 90° and asymmetric beam options.
BODY
Anodized aluminum with satin finishing. Black and white color options with elegant design.
CONVERTOR
Long life, low power loss converter with constant current. Compatible with ENEC standards.
LED
LED modules with 60.000 hours lifetime LUMILEDS / OSRAM / NICHIA brand LEDs.
SUSPENSION
Composed of 1mm steel wire rope and nickel-plated brass components. Suspension height is adjustable. Supplied with transparent electric cord and ceiling mounted electrical junction box with aesthetic design
COLOURS
White, Black
USED AREAS
Shopping Malls, Supermarkets, Offices, Meeting rooms, Stores, Hospitals, Schools, Corridors
| Insulation Class | CLASS I |
|---|---|
| Ingress Protection (IP) | IP40 |
| Weight | 1.3–6.6 kg |
| Warranty | 3 Years |
| Power | 18–89 W |
|---|---|
| Power Factor | >0.95 |
| Cable | Halogen-Free |
| Ambient Temperature | -20°C / +50°C |
| LED Lifetime L70 | 60,000 Hours |
| Luminous Flux | 2439–13415 lm |
|---|---|
| Beam Angle | 30° / 60° / 90° |
| UGR | UGR ≤ 19 |
| Colour Consistency (MacAdam) | Mc Adams ≤ 3 |
| Code | AC POWER (W) | Luminaire Output Flux (lm) | Width (mm) | Diameter / Length (mm) | Height (mm) | Weight (kg) | Ldt |
|---|---|---|---|---|---|---|---|
| PL22S12L15C | 18 | 2439 | 64 | 577 | 60 | 1.3 | ⬇️ |
| PL22S13L15C | 27 | 3659 | 64 | 857 | 60 | 2.0 | ⬇️ |
| PL22S14L15C | 35 | 4878 | 64 | 1137 | 60 | 2.6 | ⬇️ |
| PL22S15L15C | 44 | 6098 | 64 | 1417 | 60 | 3.3 | ⬇️ |
| PL22S16L15C | 53 | 7317 | 64 | 1697 | 60 | 4.0 | ⬇️ |
| PL22S17L15C | 62 | 8537 | 64 | 1977 | 60 | 4.6 | ⬇️ |
| PL22S18L15C | 71 | 9756 | 64 | 2257 | 60 | 5.3 | ⬇️ |
| PL22S19L15C | 80 | 12195 | 64 | 2537 | 60 | 5.9 | |
| PL22S10L15C | 89 | 13415 | 64 | 2817 | 60 | 6.6 |

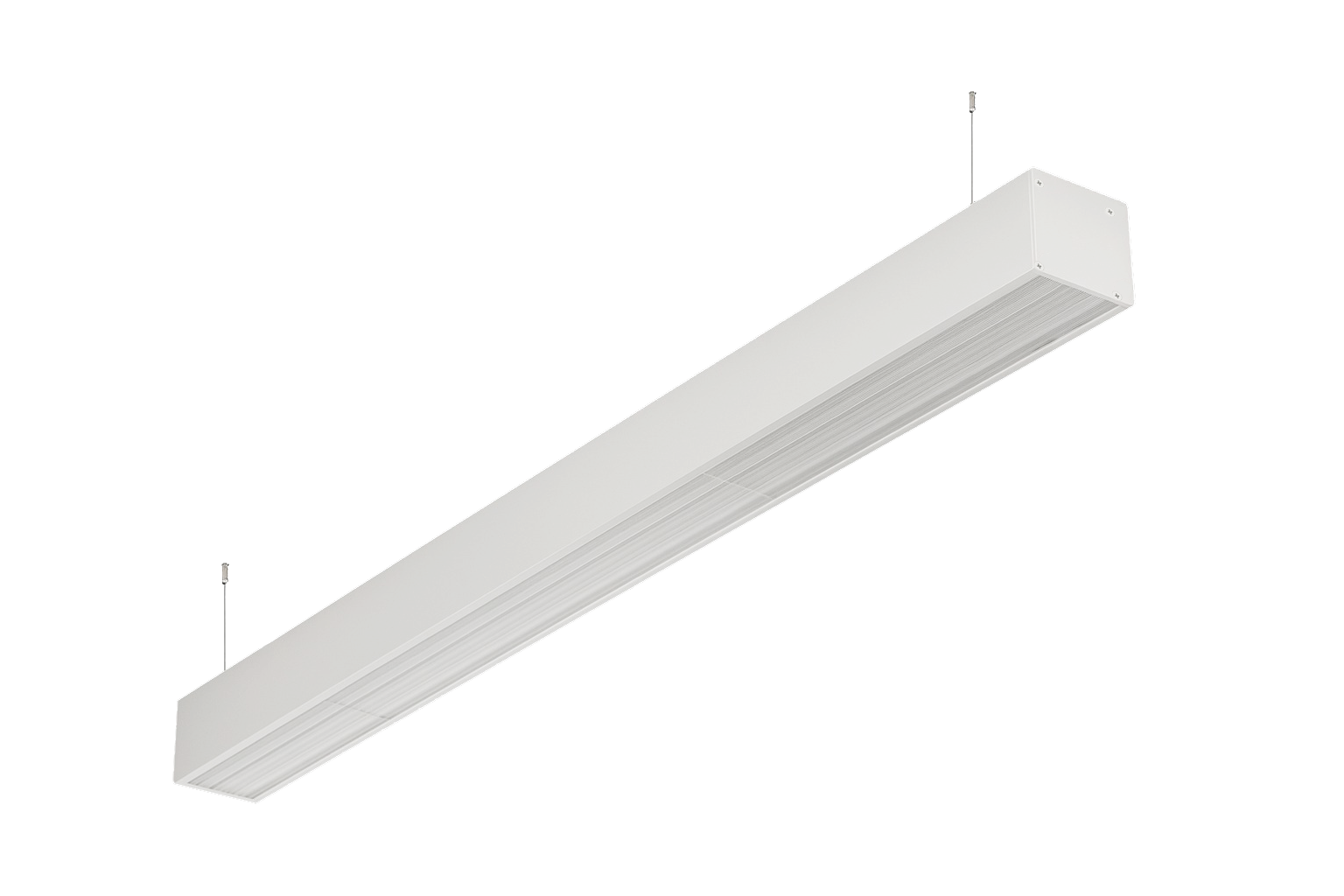

Optina is a linear LED pendant built around glare control. The lens system is what sets the range apart: at UGR<19 it limits uncomfortable glare in spaces where people work at screens. That figure is the threshold EN 12464-1 points to for areas with computer use in office lighting, which places the product directly in that type of space.
The lens is offered with four distributions: 30°, 60°, 90° and asymmetric. The narrow beam concentrates light on the working plane and the wide beam spreads it, while the asymmetric option throws the light to one side for uses such as wall washing or shelf lighting. Having four distributions in one product makes it possible to resolve different room types while holding the same visual language.
The product is manufactured in seven codes. PL22S12L15C opens the range at 18 W and 2,439 lm in 577 mm, with lengths stepping through 857, 1137, 1417, 1697 and 1977 mm. The largest type, PL22S18L15C, reaches 71 W and 9,756 lm at 2257 mm. Body width is 64 mm and height 60 mm; weight ranges from 1.3 kg to 5.3 kg. Efficacy of roughly 135 to 137 lm/W represents the highest band in the range.
The body is anodised aluminium with a satin finish, offered in white and black. LUMILEDS, OSRAM and NICHIA LED modules are rated at 60,000 hours, with an ENEC-compliant constant current converter. The suspension uses 1 mm steel wire rope and nickel-plated brass parts with adjustable drop. Suitable for shopping malls, markets, offices, meeting rooms, stores, hospitals, schools, corridors, open-plan offices, universities, libraries, conference halls, clinics and public buildings. An LDT file for each type and the datasheet are on the product page. Dimmable DALI driver and emergency kit are optional.
