50° lens
80° lens Polar luminous intensity curve (cd/klm): solid line C0–C180, dashed line C90–C270 plane. Drawn from the LDT photometric file.
BODY
Aluminum with an elegant design, available in white and black color options.
LENS
50° or 80° Lens
LED
LED modules from LUMILEDS / OSRAM / NICHIA brands with a lifespan of 60,000 hours.
COLOR OPTIONS
White, Black
APPLICATION AREAS
Shopping Malls, Markets, Offices, Meeting Rooms, Living Rooms, Waiting Lounges, Stores, Hospitals, Schools, Corridors
| Insulation Class | CLASS I |
|---|---|
| Ingress Protection (IP) | IP40 |
| Weight | 2.5–11 kg |
| Warranty | 3 Years |
| Power | 16–60 W |
|---|---|
| Power Factor | >0.95 |
| Cable | Halogen-Free |
| Ambient Temperature | -20°C / +50°C |
| LED Lifetime L70 | 60,000 Hours |
| Luminous Flux | 1935–7730 lm |
|---|---|
| Beam Angle | 50° / 80° |
| UGR | UGR ≤ 19 |
| Colour Consistency (MacAdam) | Mc Adams ≤ 3 |

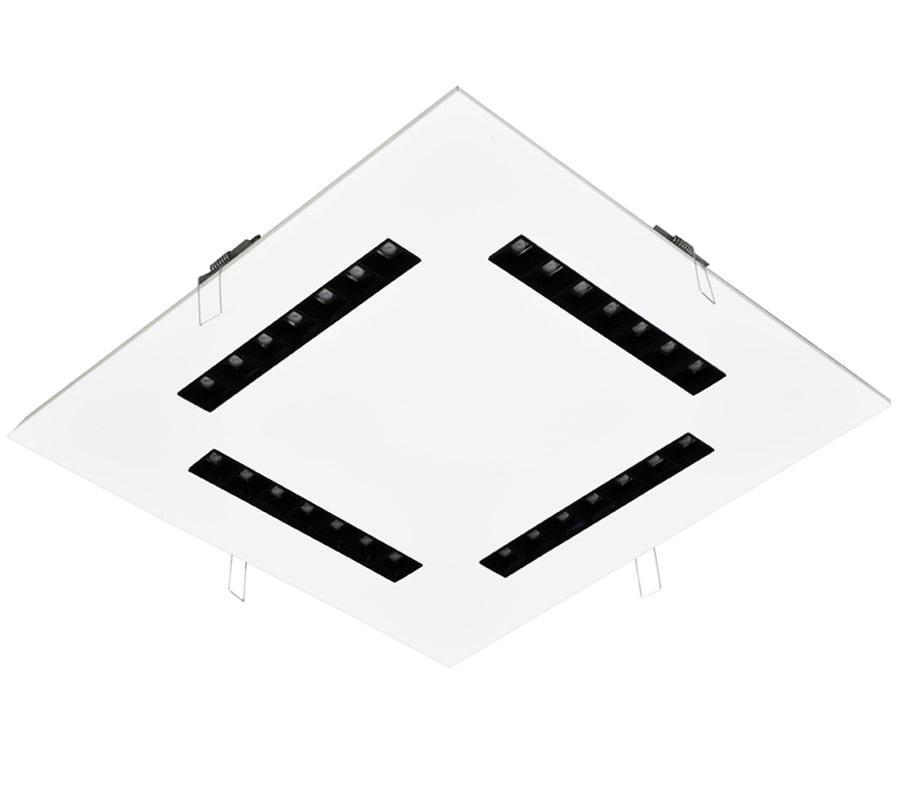

Elite Daisy Recessed Gypsum with Lens is a lensed LED luminaire installed flush into a plasterboard ceiling. It differs from the T-Bar model in that it sits within an opening cut into the plaster surface rather than dropping into a grid, which produces a continuous, frameless ceiling.
Four codes are offered: PL10AY21E15L at 16 W and 1,935 lm in 295x595 mm, PL10AY22E15L at 29 W and 3,865 lm in 295x1195 mm, PL10AY24E15L at 60 W and 7,730 lm in 295x1195 mm, and PL10AY41E15L at 29 W and 3,865 lm in 595x595 mm. Body height is 23 mm. The body is aluminium, offered in white and black.
A 50° or 80° lens allows the distribution to be matched to the space. The narrow beam is chosen in retail to pick out displayed goods, the wide beam in offices and corridors for a more even illuminance. LED modules from LUMILEDS, OSRAM and NICHIA are rated at 60,000 hours. Suitable for shopping malls, markets, offices, meeting rooms, waiting halls, stores, hospitals, schools and corridors. The EC and UKCA declarations and the TS EN IEC 60598-2-2 certificate are on the product page.
