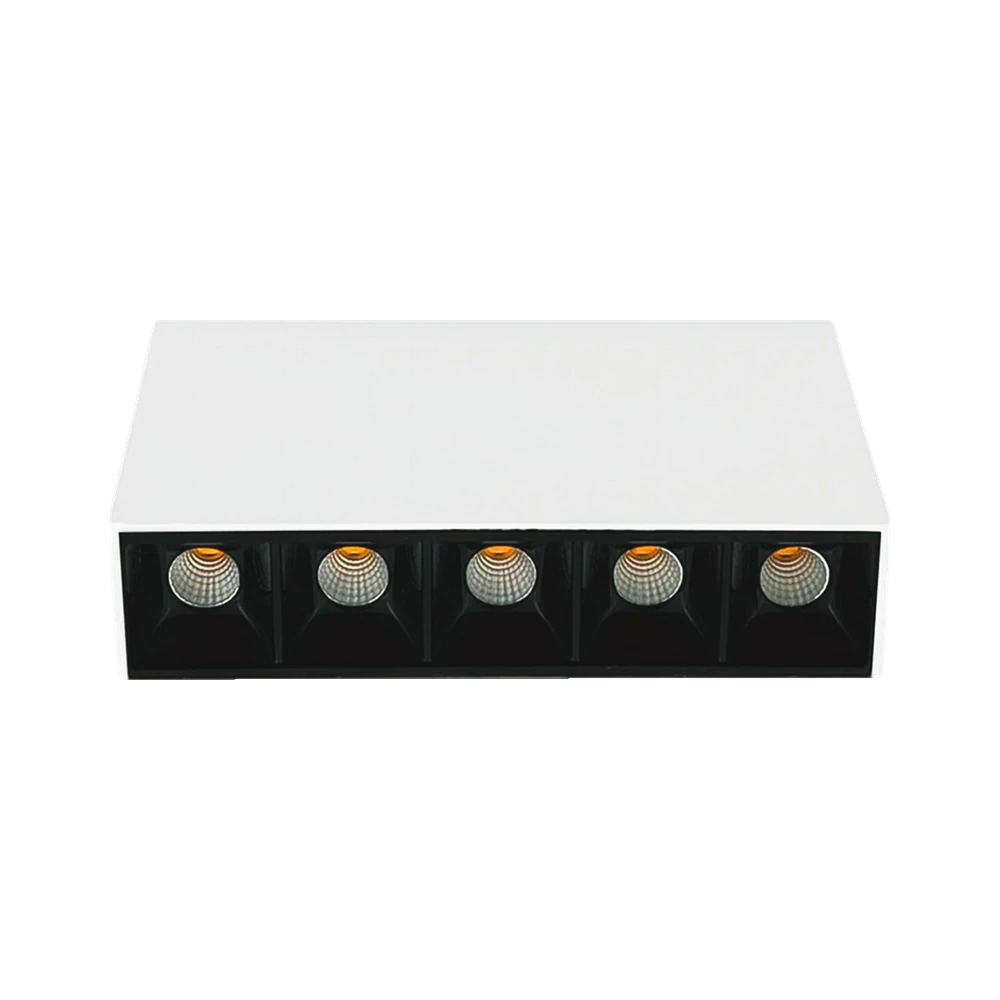

Surface Mounted Spot PLD10U

BODY

Aluminum profile frame and injection head.

REFLECTOR

High-purity aluminum reflector; narrow, medium and wide angle options.

CONVERTER

Long life, low power loss converter with constant current. Compatible with ENEC standards.

LED

LED modules with 60,000 hours lifetime, SAMSUNG / OSRAM / PHILIPS brand LEDs.

APPLICATION AREAS

Shopping Malls, Supermarkets, Offices, Meeting Rooms, Stores, Hospitals, Schools, Corridors

Surface Mounted Spot PLD10U Technical Specifications

General
Body Aluminum profile frame and injection head
Optic High-purity aluminum reflector; narrow, medium and wide angle
Insulation Class Class I
Ingress Protection (IP) IP40
Electrical
Power 8–22 W
Light Source COB LED (SAMSUNG / OSRAM / PHILIPS)
Input Voltage 220–240 V AC / 50–60 Hz
LED Driver Constant current (ENEC)
LED Lifetime L70 60,000 Hours
Light & Optics
Luminous Flux 800–2200 lm
Colour Temperature (CCT) 2700–6500 K
CRI [Ra] > 80

Optional

  • Dimmable driver
  • Emergency kit

Classes & Standards

  • CE: conforms to EU safety, health and environmental requirements.
  • Suitable for direct mounting on normally flammable surfaces.
  • Class I: electrical protection with earth connection.
  • IP40: protected against solid objects over 1 mm.
  • TSE: certified by the Turkish Standards Institution.
  • TS 8698: standard the product complies with.
  • EN 60598-2-1: standard the product complies with.
Code AC POWER (W) LED Type Luminaire Output Flux (lm) Color Temperature (K) a x b (mm) h (mm)

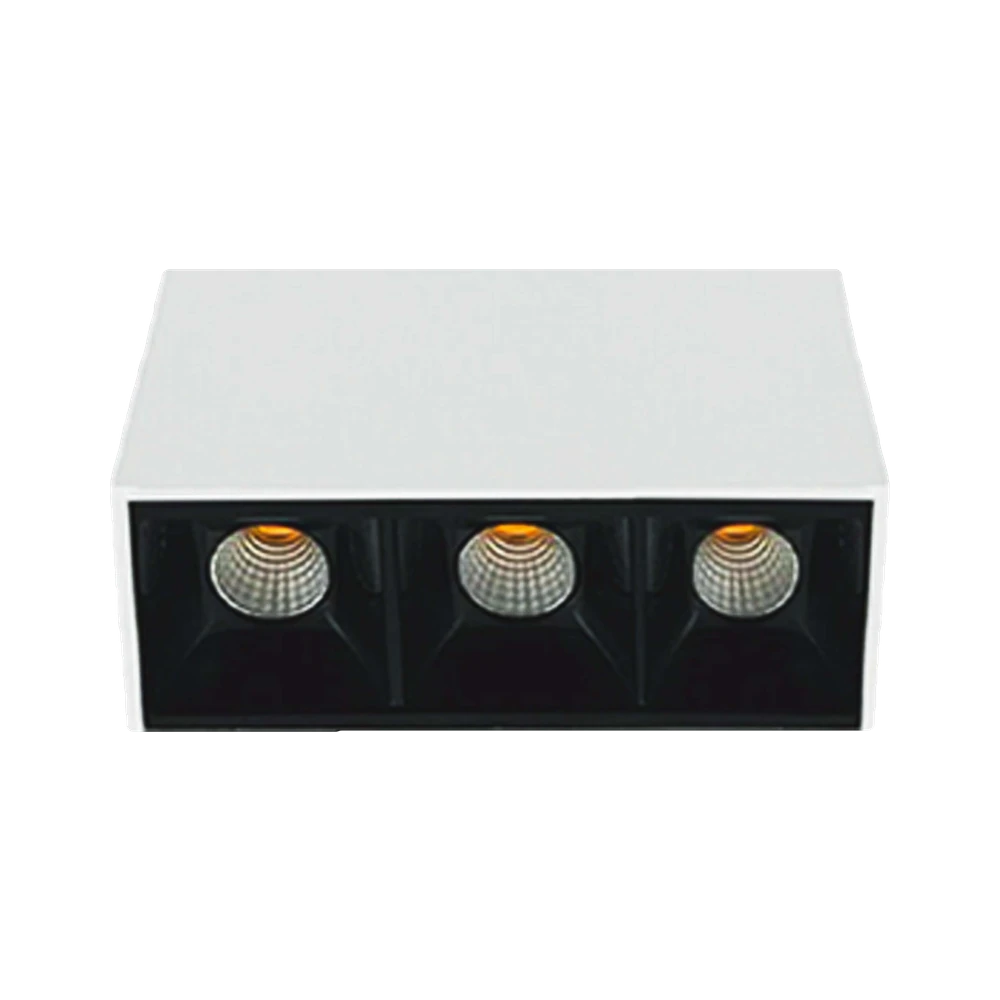

PLD10U8L 8 COB 800 2700 - 6500 32 x 84 80
PLD10U10L 10 COB 1000 2700 - 6500 32 x 136 80

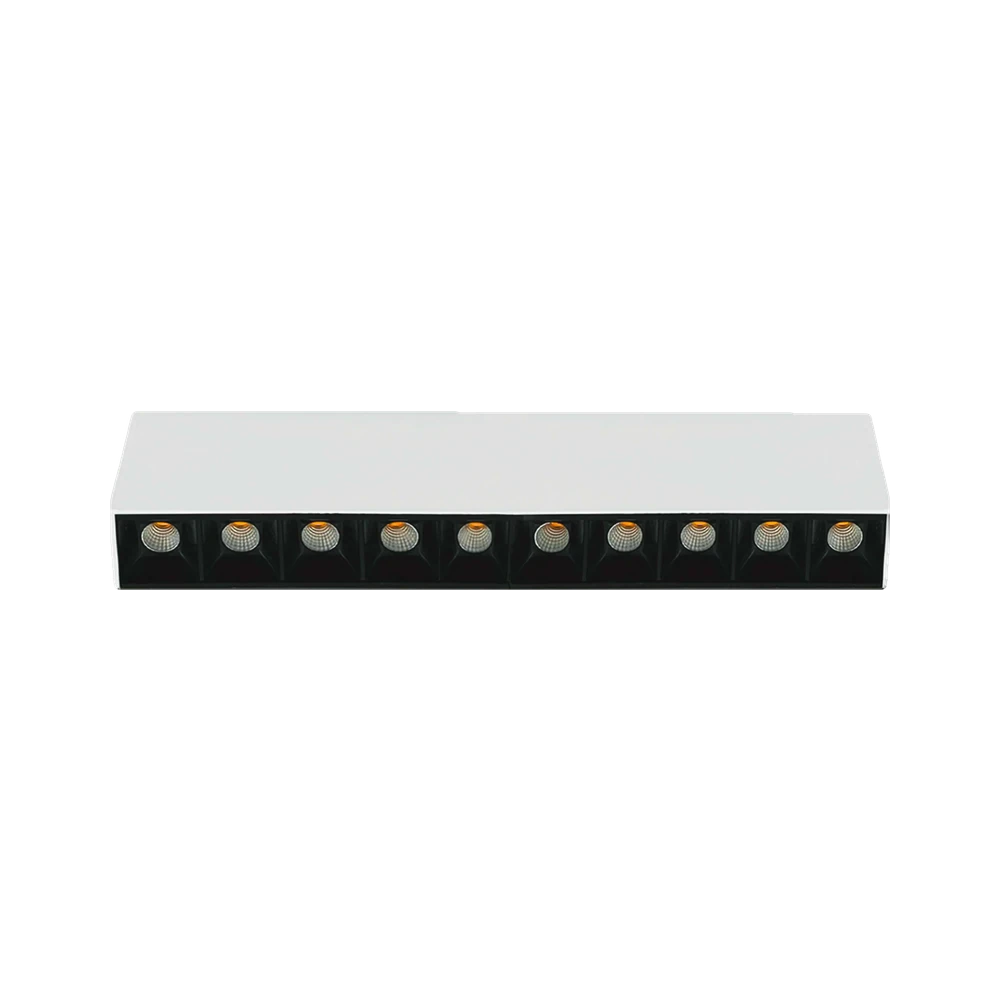

PLD10U22L 22 COB 2200 2700 - 6500 32 x 267 80
