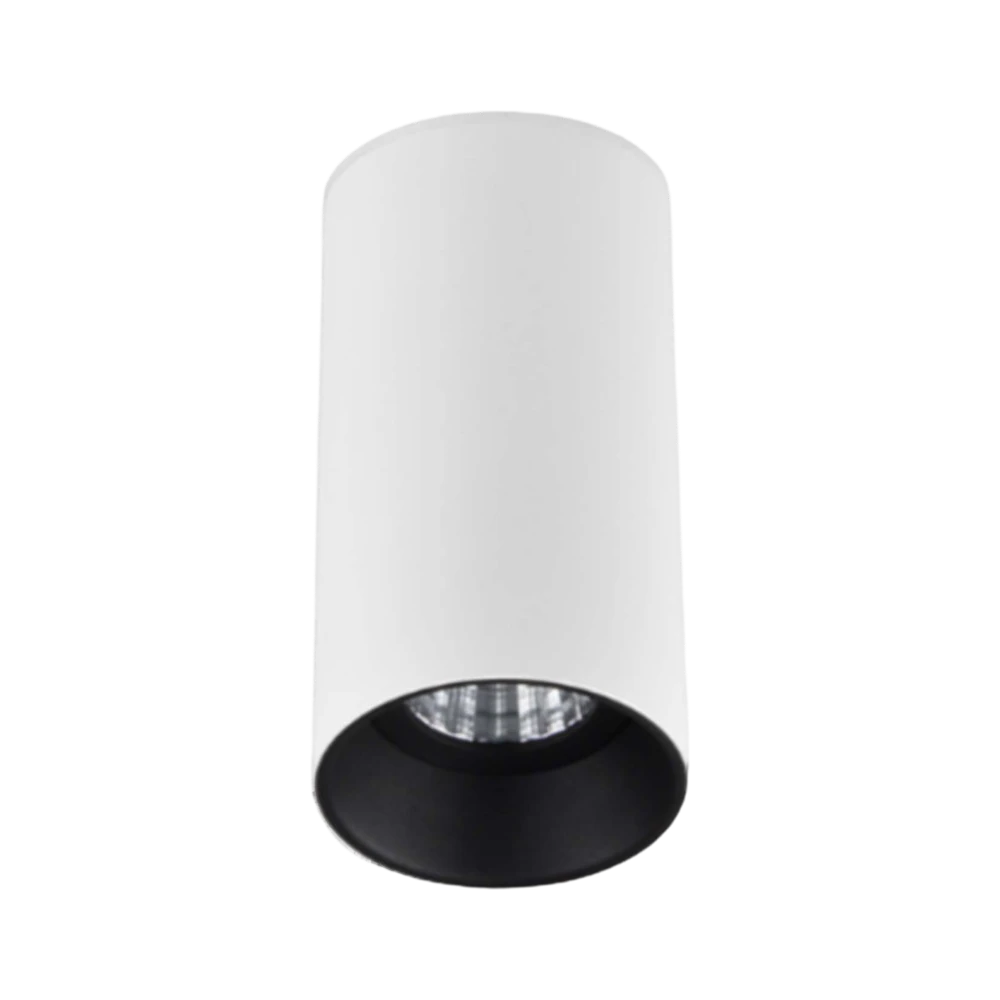

Surface Mounted Spot PLC4U

Surface Mounted Spot PLC4U

BODY

Aluminum profile frame and injection head.

REFLECTOR

High-purity aluminum reflector; narrow, medium and wide angle options.

CONVERTER

Long life, low power loss converter with constant current. Compatible with ENEC standards.

LED

LED modules with 60,000 hours lifetime, SAMSUNG / OSRAM / PHILIPS brand LEDs.

APPLICATION AREAS

Shopping Malls, Supermarkets, Offices, Meeting Rooms, Stores, Hospitals, Schools, Corridors

Surface Mounted Spot PLC4U Technical Specifications

General
Body Aluminum profile frame and injection head
Optic High-purity aluminum reflector; narrow, medium and wide angle
Insulation Class Class I
Ingress Protection (IP) IP40
Electrical
Power 10–38 W
Light Source COB LED (SAMSUNG / OSRAM / PHILIPS)
Input Voltage 220–240 V AC / 50–60 Hz
LED Driver Constant current (ENEC)
LED Lifetime L70 60,000 Hours
Light & Optics
Luminous Flux 1120–4260 lm
Colour Temperature (CCT) 2700–6500 K
CRI [Ra] > 80

Optional

  • Dimmable driver
  • Emergency kit

Classes & Standards

  • CE: conforms to EU safety, health and environmental requirements.
  • Suitable for direct mounting on normally flammable surfaces.
  • Class I: electrical protection with earth connection.
  • IP40: protected against solid objects over 1 mm.
  • TSE: certified by the Turkish Standards Institution.
  • TS 8698: standard the product complies with.
  • EN 60598-2-1: standard the product complies with.
Code AC POWER (W) LED Type Luminaire Output Flux (lm) Color Temperature (K) a (mm) h (mm)
PLC4U8510C 10 COB 1120 2700 - 6500 85 164
PLC4U1120C 20 COB 2300 2700 - 6500 118 165,5
PLC4U1127C 27 COB 3105 2700 - 6500 118 165,5
PLC4U1527C 27 COB 3105 2700 - 6500 150 177
PLC4U1538C 38 COB 4260 2700 - 6500 150 177
