OUR PRODUCTS

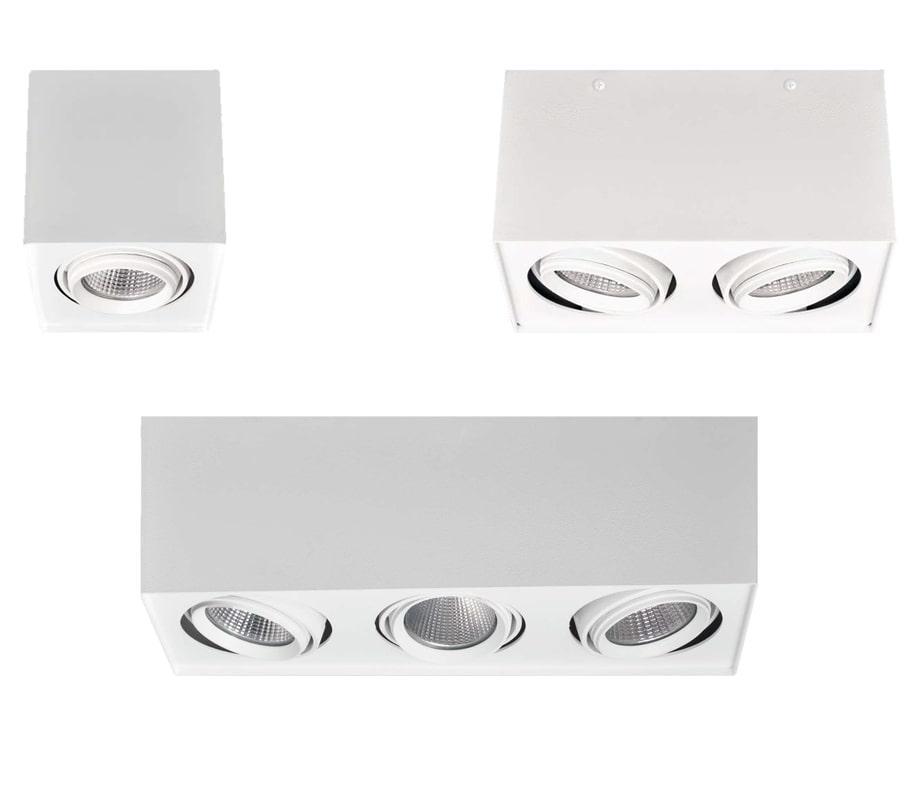

Surface Mounted Adjustable Downlight

Surface Mounted Adjustable Downlight

BODY

White or optional any color aluminum body with effective cooling performance.

CONVERTER

Long-lasting, low power, constant current converter compliant with ENEC standards.

LED

60,000-hour lifespan LUMILEDS brand LED modules.

APPLICATION AREAS

Shopping Centers, Markets, Offices, Meeting Rooms, Living Rooms, Waiting Lounges, Stores, Hospitals, Schools, Corridors

Surface Mounted Adjustable Downlight Technical Specifications

General
Insulation Class CLASS I
Ingress Protection (IP) IP40
Weight 1.5–4.7 kg
Warranty 3 Years
Electrical
Power 9–25 W
Power Factor >0.95
Cable Halogen-Free
Ambient Temperature -20°C / +50°C
LED Lifetime L70 60,000 Hours
Light & Optics
Luminous Flux 630–1890 lm
Beam Angle 120°
Colour Consistency (MacAdam) Mc Adams ≤ 3

Optional

  • DALI Driver
  • Emergency kit
  • UGR ≤ 19
  • CRI ≥ 90
  • RGBW Options
  • Tunable White

Classes & Standards

  • CE: conforms to EU safety, health and environmental requirements.
  • Suitable for direct mounting on normally flammable surfaces.
  • Class I: electrical protection with earth connection.
  • IP40: protected against solid objects over 1 mm.
  • TSE: certified by the Turkish Standards Institution.
  • TS 8698: standard the product complies with.
  • EN 60598-2-1: standard the product complies with.
Code AC POWER (W) Luminaire Output Flux (lm) Width (mm) Diameter / Length (mm) Height (mm) Weight (kg) Ldt
PLD3U09C 9 630 97 97 100 1,50
PLD3U17C 17 1255 197 97 100 3,20
PLD3U25C 25 1890 292 97 100 4,70
