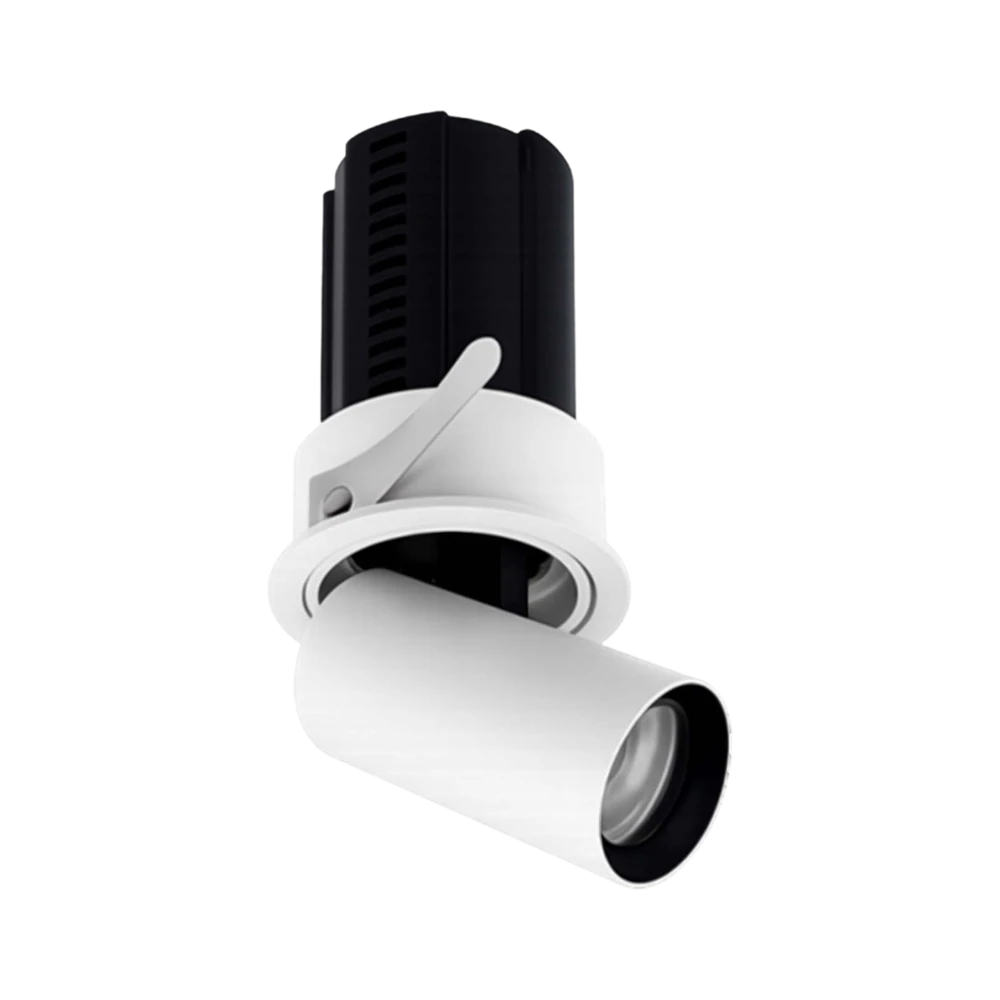

Recessed Spot PLC5A

Recessed Spot PLC5A
Recessed Spot PLC5A

BODY

Aluminum profile frame and injection head.

REFLECTOR

High-purity aluminum reflector; narrow, medium and wide angle options.

CONVERTER

Long life, low power loss converter with constant current. Compatible with ENEC standards.

LED

LED modules with 60,000 hours lifetime, SAMSUNG / OSRAM / PHILIPS brand LEDs.

APPLICATION AREAS

Shopping Malls, Supermarkets, Offices, Meeting Rooms, Stores, Hospitals, Schools, Corridors

Recessed Spot PLC5A Technical Specifications

General
Body Aluminum profile frame and injection head
Optic High-purity aluminum reflector; narrow, medium and wide angle
Insulation Class Class I
Ingress Protection (IP) IP40
Electrical
Power 10–33 W
Light Source COB LED (SAMSUNG / OSRAM / PHILIPS)
Input Voltage 220–240 V AC / 50–60 Hz
LED Driver Constant current (ENEC)
LED Lifetime L70 60,000 Hours
Light & Optics
Luminous Flux 1010–3270 lm
Colour Temperature (CCT) 2700–6500 K
CRI [Ra] > 80

Optional

  • Dimmable driver
  • Emergency kit

Classes & Standards

  • CE: conforms to EU safety, health and environmental requirements.
  • Suitable for direct mounting on normally flammable surfaces.
  • Class I: electrical protection with earth connection.
  • IP40: protected against solid objects over 1 mm.
  • TSE: certified by the Turkish Standards Institution.
  • TS 8698: standard the product complies with.
  • EN 60598-2-1: standard the product complies with.

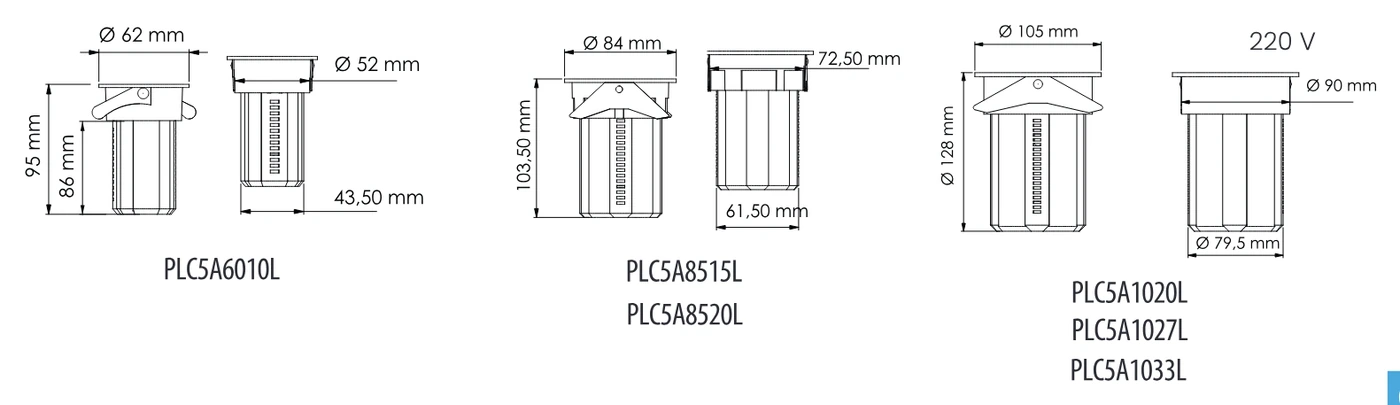

Code AC POWER (W) LED Type Luminaire Output Flux (lm) Color Temperature (K) a (mm) h (mm) Ceiling Cut (mm)
PLC5A6010L 10 COB 1010 2700 - 6500 62 95 55
PLC5A8515L 15 COB 1640 2700 - 6500 84 103,5 75
PLC5A8520L 20 COB 2120 2700 - 6500 84 103,5 75
PLC5A1020L 20 COB 2125 2700 - 6500 105 128 95
PLC5A1027L 27 COB 2745 2700 - 6500 105 128 95
PLC5A1033L 33 COB 3270 2700 - 6500 105 128 95
