Polar luminous intensity curve (cd/klm): solid line C0–C180, dashed line C90–C270 plane. Drawn from the LDT photometric file.
BODY
Aluminum with an elegant design available in white and black color options.
CONVERTER
Long-lasting constant current converter compliant with ENEC standards.
LED
LED modules by LUMILEDS / OSRAM / NICHIA with a lifespan of 60,000 hours.
COLOR OPTIONS
White, Black
| Insulation Class | CLASS I |
|---|---|
| Ingress Protection (IP) | IP40 |
| Weight | 1.5–3.7 kg |
| Warranty | 3 Years |
| Power | 21–51 W |
|---|---|
| Power Factor | >0.95 |
| Cable | Halogen-Free |
| Ambient Temperature | -20°C / +50°C |
| LED Lifetime L70 | 60,000 Hours |
| Luminous Flux | 495–1235 lm |
|---|---|
| Beam Angle | 120° |
| Colour Consistency (MacAdam) | Mc Adams ≤ 3 |

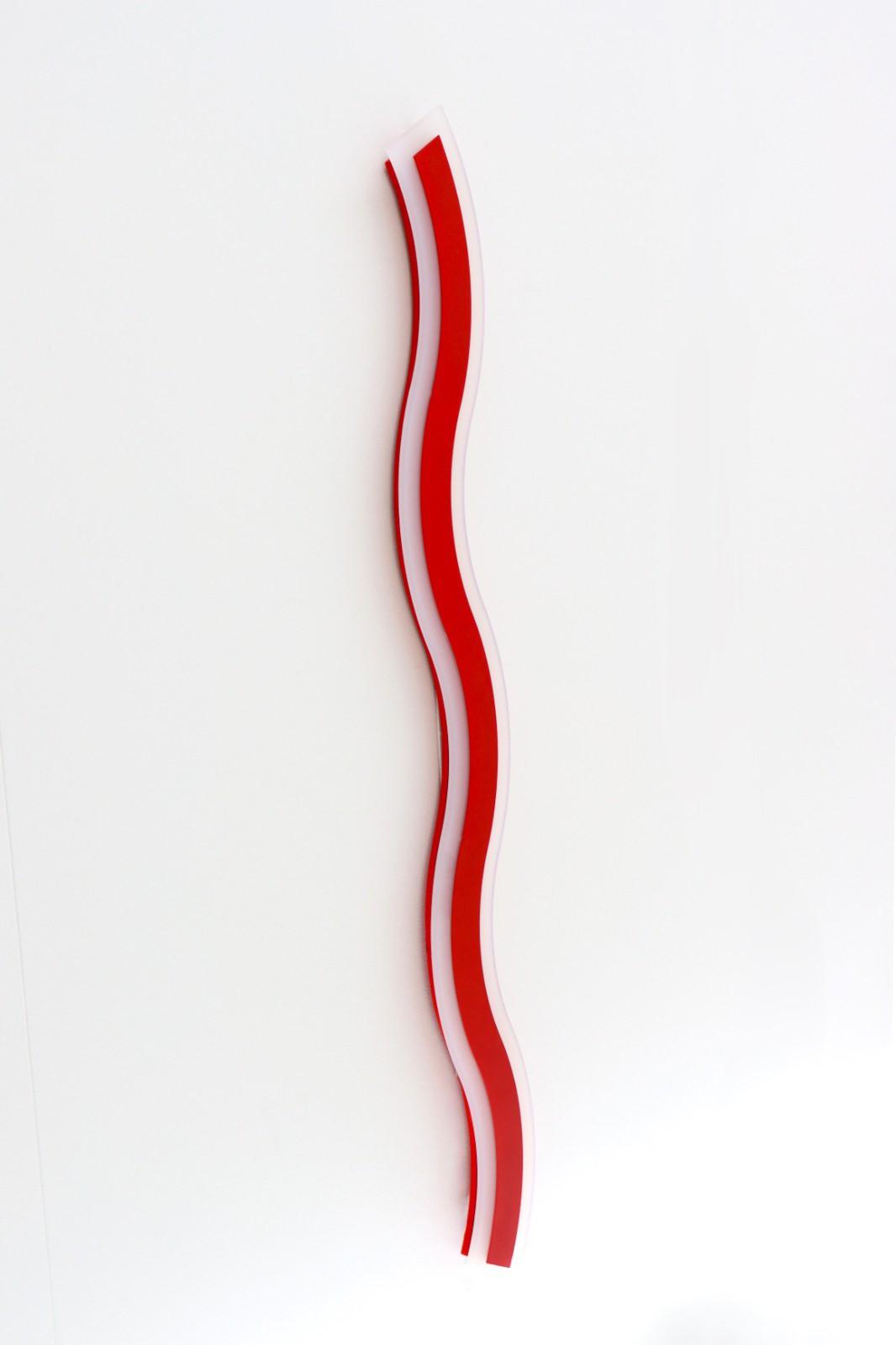

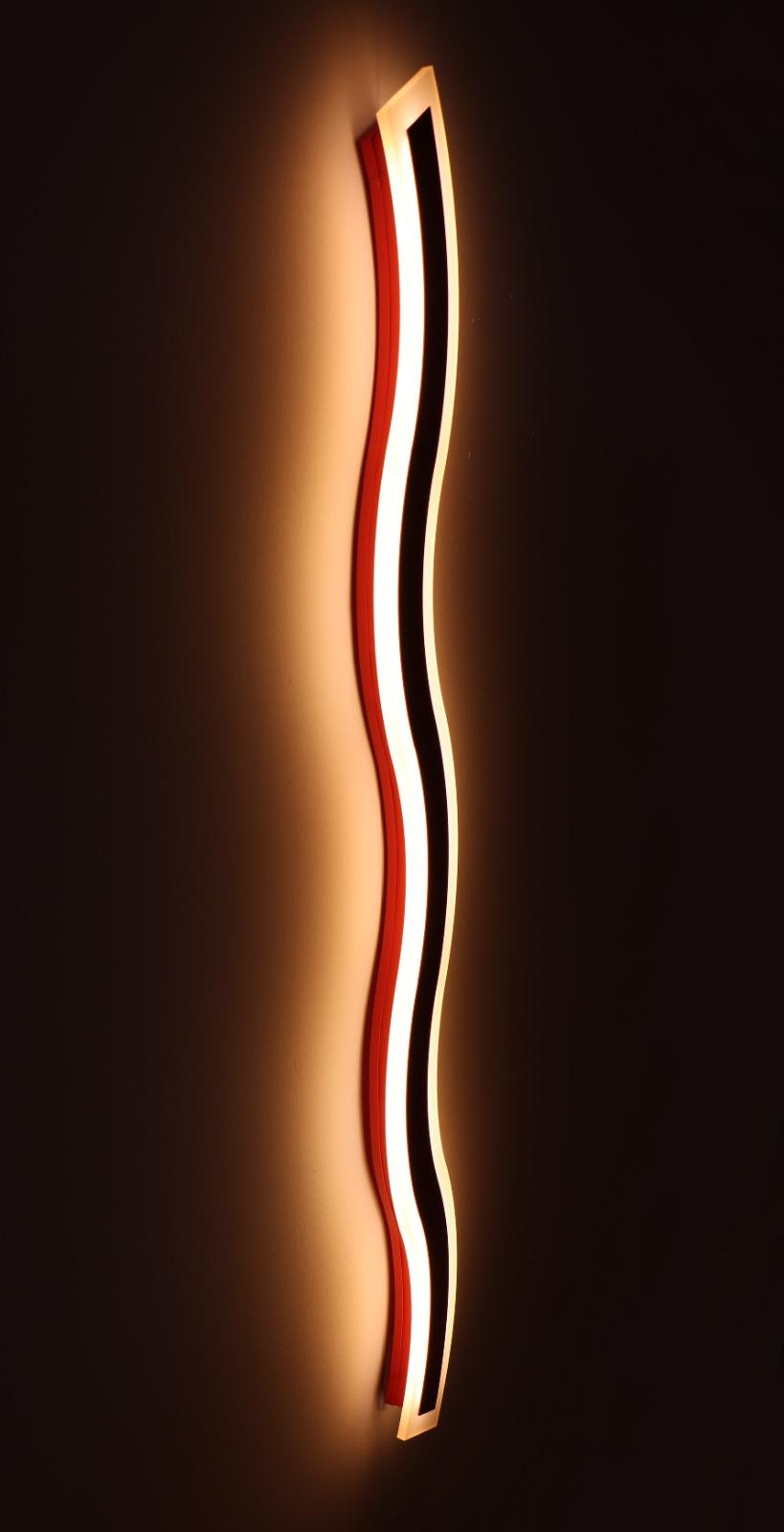

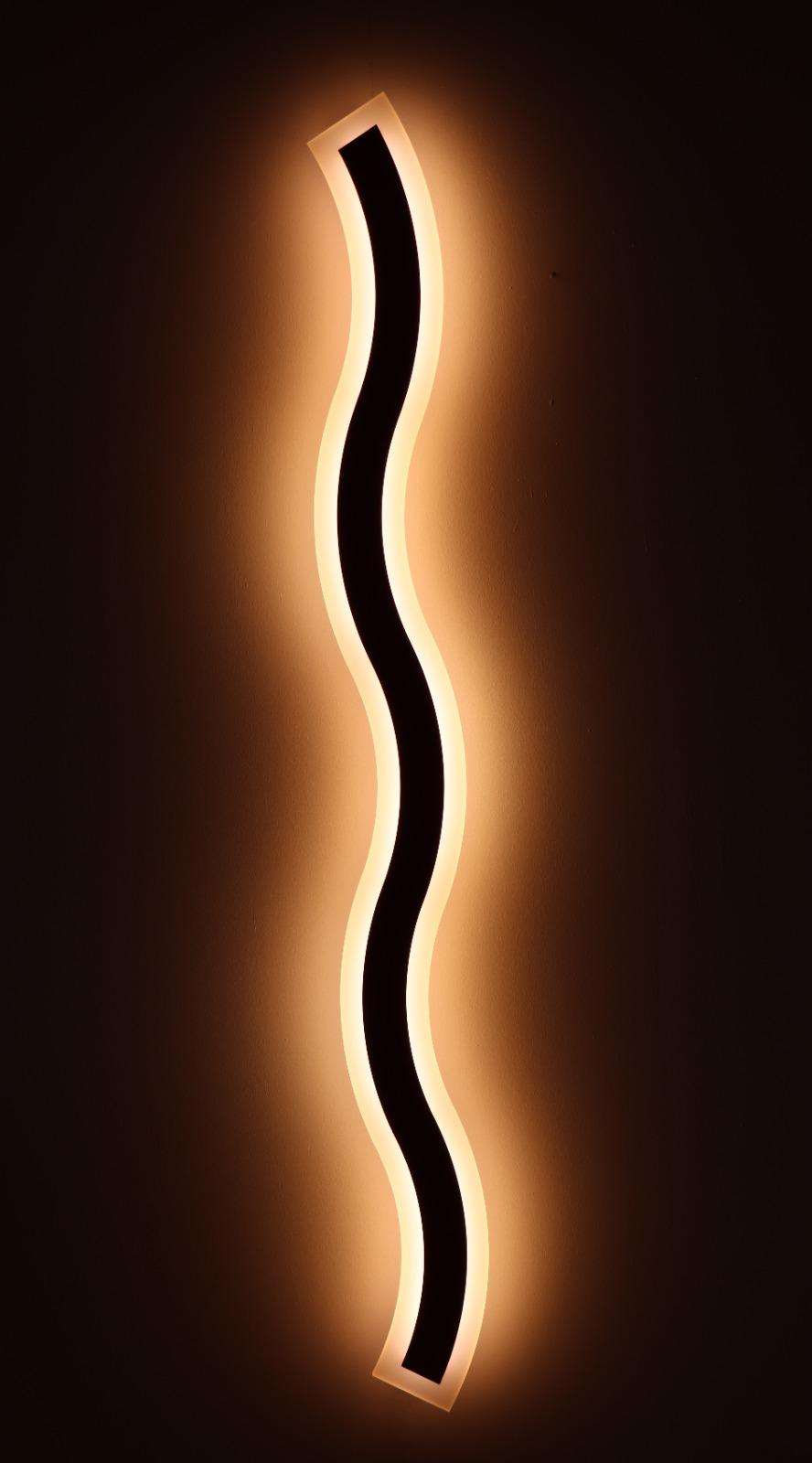

Nera Applique is a wall luminaire conceived for decorative accent. What separates it from the other appliques in the range is that the light output is deliberately held low: 495 lm at 21 W, 1,235 lm at 51 W. Those figures are aimed not at lighting a room but at leaving a controlled trace of light on the wall. The product positions itself as an interior element rather than a lighting solution.
The product is manufactured in four codes. PL25U12L25C opens the range at 21 W and 495 lm in 640 mm; PL25U13L25C gives 30 W and 740 lm at 910 mm, PL25U14L25C 41 W and 988 lm at 1190 mm, and PL25U15L25C 51 W and 1,235 lm at 1470 mm. Body width is 100 mm and height just 45 mm; weight ranges from 1.5 kg to 3.7 kg. At 45 mm this is the slimmest section in the applique programme and keeps projection from the wall to a minimum.
The body is aluminium in an elegant design, offered in white and black. LED modules from LUMILEDS, OSRAM and NICHIA are rated at 60,000 hours; the converter is a long-life, ENEC-compliant constant current type.
Suitable for hotel lobbies and rooms, reception areas, restaurants and cafés, corridors, stairwells, living rooms, waiting lounges, showrooms and stores. The datasheet, EC declaration of conformity, UKCA certificate and an LDT file for each type are on the product page. Dimmable DALI driver and emergency kit are optional; UGR<19 glare control and CRI 90 colour rendering can also be supplied on request.
