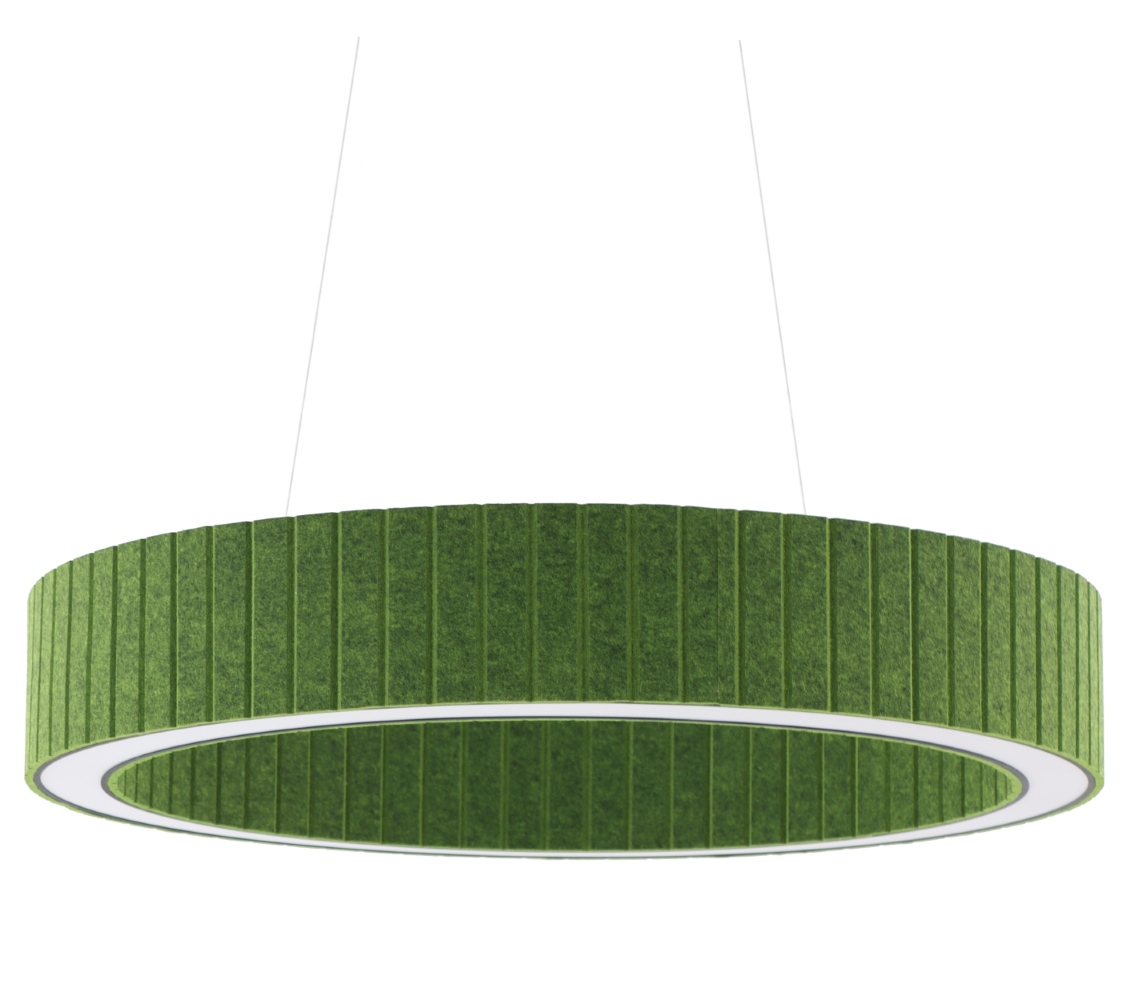

Galaksı O Acoustıc-Acoustic LED Luminaire

BODY

Anodized aluminum with satin finishing. Black and white color options with elegant design.

CONVERTOR

Long life, low power loss converter with constant current. Compatible with ENEC standards.

LED

LED modules with 60.000 hours lifetime LUMILEDS / OSRAM / NICHIA brand LEDs.

SUSPENSION

Composed of 1mm steel wire rope and nickel-plated brass components. Suspension height is adjustable. Supplied with transparent electric cord and ceiling mounted electrical junction box with aesthetic design

COLOURS

White, Black

USED AREAS

Shopping Malls, Supermarkets, Offices, Meeting rooms, Stores, Hospitals, Schools, Corridors

OPTIONS

Dimmable DALI Driver, Emergency Kit

Code	AC POWER (W)	Armature Output Flux (lm)	Width (mm)	Diameter / Length (mm)	Height (mm)	Weight (kg)
PL8SOAK4L15C	26	2585	79	447	200	5,1
PL8SOAK6L15C	39	3880	79	620	200	6,0
PL8SOAK6L25C	61	5835	79	620	200	6,0
PL8SOAK8L15C	53	5170	79	800	200	7,7
PL8SOAK8L25C	80	7780	79	800	200	7,7
PL8SOAK10L15C	66	6460	79	980	200	10,7
PL8SOAK10L25C	100	9725	79	980	200	10,7
PL8SOAK12L15C	79	8210	79	1155	200	12,7
PL8SOAK12L25C	120	12315	79	1155	200	12,7
PL8SOAK14L15C	92	10240	79	1335	200	14,7
PL8SOAK14L25C	140	15360	79	1335	200	14,7
PL8SOAK16L15C	105	11705	79	1500	200	17,7
PL8SOAK16L25C	160	17560	79	1500	200	17,7
PL8SOAK20L15C	132	14630	79	1890	200	18,7
PL8SOAK20L25C	200	21945	79	1890	200	18,7

Open-plan offices force two problems to be solved at once: insufficient light and uncontrolled noise. Galaksi O Acoustic answers both with a single ring-shaped luminaire. Because light radiates from the perimeter rather than a central point, it casts no hard shadow on the surface below. Hung above a meeting table, it delivers a comparable illuminance at both ends of the table. The product is available in eight diameters from 447 mm to 1890 mm.

Power ranges from 26 W to 200 W, with luminaire output flux between 2,585 and 21,945 lm. The ring section measures 79 mm wide and the body stands 200 mm high. The absorptive layer is 9 mm recycled PET felt weighing roughly 1.75 kg/m² — a low area weight that keeps suspension loads modest even on the largest diameters. Tested to EN ISO 354, the material returns an NRC of 0.70 and an absorption coefficient of 0.80 at 500 Hz.

Fire classification under EN 13501-1 is B-s1, d0: s1 denotes low smoke production, d0 confirms no flaming droplets. ASTM E84 testing returned Class A. The aluminium body is offered in white and black. LUMILEDS, OSRAM and NICHIA LED modules rated at 60,000 hours are paired with an ENEC-compliant constant current converter. A dimmable DALI driver and emergency kit can be specified as options.On request, UGR<19 glare control and CRI 90 colour rendering can also be provided.

All processes from design to production are carried out in our factory. This allows us to design products that combine aesthetics with competitiveness.
