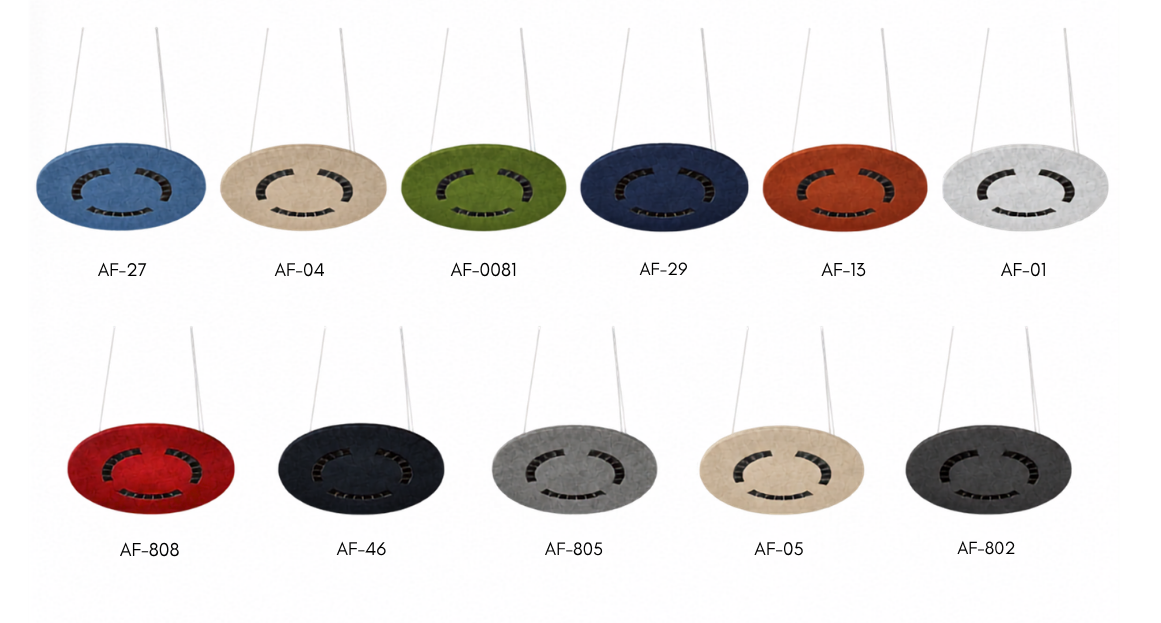

Elite Daisy O Slim Acoustic -Acoustic LED Luminaire

BODY

Elegant aluminum design with white and black color options.


LENS

Special lens for focused light distribution.


CONVERTER

Long-lasting constant current converter compliant with ENEC standards.


LED

LED modules from LUMILEDS / OSRAM / NICHIA with a lifetime of 60,000 hours.


SUSPENSION

Made of 1mm steel braided wire and nickel-plated brass parts, adjustable suspension length, with transparent electrical cable and an aesthetically designed ceiling-mounted electrical connection box.


COLOR OPTIONS

White, Black


APPLICATION AREAS

Shopping malls, Markets, Offices, Meeting rooms, Living rooms, Waiting lounges, Stores, Hospitals, Schools, Corridors


OPTIONS

Dimmable DALI Driver, Emergency kit.

Code AC POWER (W) Armature Output Flux (lm) Diameter / Length (mm) Height (mm) Weight (kg) LDT
PL10SOSA3L15C 22 2900 53 53 1,1 ⬇️

Elite    Daisy    O    Slim    Acoustic    is    built    with    a    narrower    section    than    the    standard    ring    model.    That    slenderness    is    not    purely    an    aesthetic    choice;    in    lowceilinged    spaces    it    reduces    the    visual    weight    of    the    luminaire    and    lets    the    volume    read    as    more    open.    On    minimalist    office    and    retail    projects    built around    clean    lines,    a    heavy-bodied    luminaire    fights    the    language    of    the    room,    while    the    slim    model    performs    the    same    job    while    occupying    less    of    it. A    thin    section    does    not    mean    compromised    acoustic    performance.    The    9    mm    recycled    PET    felt    used    here    is    both    light    and    efficient    at    roughly    1.75 kg/m²    area    weight.    Its    NRC    value    measured    to    EN    ISO    354    is    0.70,    and    the    material    peaks    at    an    absorption    coefficient    of    0.87    at    400    Hz.    In    glasspartitioned    meeting    rooms,    where    the    proportion    of    reflective    surface    is    high,    distributing    several    units    evenly    amplifies    the    acoustic    effect. Fire    behaviour    is    classified    B-s1,    d0    under    EN    13501-1    and    Class    A    under    ASTM    E84.    In    retail    applications,    the    slim    body    allows    lighting    over    shelves    and display    units    without    drawing    attention    to    itself    —    the    customer's    focus    stays    on    the    product,    not    the    fitting.    The    aluminium    body    is    offered    in    white    and black.    LED    modules    rated    at    60,000    hours,    an    ENEC-compliant    converter    and    an    adjustable    suspension    are    standard.On request, UGR<19 glare control and CRI 90 colour rendering can also be provided.
